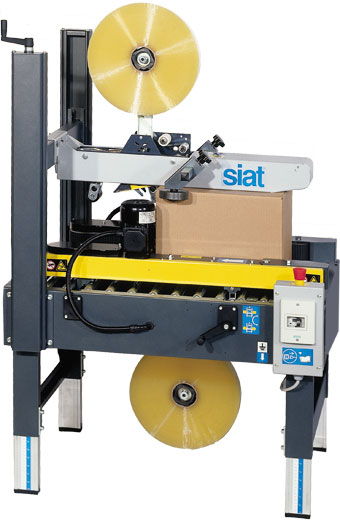

Semi automatic carton sealing machine
Semi automatic carton sealong machine from SIAT with side belt drive. The machine seals cartons with self adhesive tape and can be used for a large number of cartons with the same size.
The filled cartons are being pushed into the machine by the operator, the belt drive takes the package and pushes it through the machine. At the same time the bottom and the top of the carton are sealed with self adhesive tape.
S8: Suitable for standard boxes
S8/4: Suitable for small boxes S8/1: With 3 closers S08: Only with bottom sealing Options
|
||
| Technical Data | |||
| Type: | SIAT S8 / SIAT S8/4 / SIAT S8/1 / SIAT S08 | ||
| Drive: | Side belt drive | ||
| Speed: | 20 m / min (1200 Boxes / hour) | ||
| Carton capacity S8: | min: Length: 150mm; Width: 150mm; Height: 120mm | ||
| max: Width: 500mm; Height: 500mm | |||
| Carton capacity S8/4: | min: Length: 150mm; Width: 105mm; Height: 60mm | ||
| max: Width: 500mm; Height: 500mm | |||
| Carton capacity S8/1: | min: Length: 150mm; Width: 150mm; Height: 120mm | ||
| max: Width: 500mm; Height: 500mm | |||
| Carton capacity S08: | min: Length: 150mm; Width: 120mm; Height: 100mm | ||
| max: Width: 500mm | |||
| Measures: | Length: 980 mm x Width: 900 mm x Height: 1465-1805 mm | ||
| Tape width: | 50/75 mm | ||
| Power supply: | 230 V 50 Hz | ||
