| SIAT SM48 | |||
|

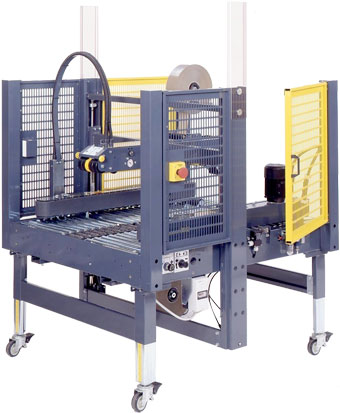

Semi automatic carton sealing machine
Semi automatic carton sealing machine with automatic adjustment for various cartons from SIAT. The machine seals cartons with self adhesive tape and can be used for a large number of cartons with various sizes.
The filled cartons are being pushed into the machine by the operator, the belt drive takes the package and pushes it through the machine. At the same time the bottom and the top of the carton are sealed with self adhesive tape.
Suitable for standard cartons.
Options
|
||
| Technical Data | |||
| Type: | SIAT SM48 | ||
| Drive: | Top and side belt drive | ||
| Speed: | 20 m / min (800 Boxes / hour) | ||
| Carton Capacity: | min: Length: 300mm; Width: 200mm; Height: 120mm | ||
| max: Width: 800mm; Height: 800mm | |||
| Measures: | Length: 1300 mm x Width: 1220 mm x Height: 1260-1610 mm | ||
| Tape width: | 75 mm | ||
| Power supply: | 230 V 50 Hz | ||
