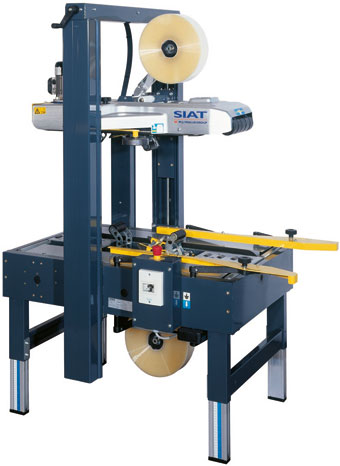

| SIAT S26 |  |
||
|
Semi automatic carton sealing machine
Semi automatic carton sealong machine from SIAT. The machine seals cartons with self adhesive tape and can be used for a large number of cartons with the same size.
The filled cartons are being pushed into the machine by the operator, the belt drive takes the package and pushes it through the machine. At the same time the bottom and the top of the carton are sealed with self adhesive tape.
Suitable for big cartons
Features
Options
|
||
| Technical Data | |||
| Type: | SIAT S26 / SIAT S26-950 / SIAT S26-1200 | ||
| Drive: | Top and bottom belt drive | ||
| Speed: | 20 m / min (800 Boxes / hour) | ||
| Carton capacity S26: | min: Length: 200mm; Width: 160mm; Height: 130mm | ||
| max: Width: 650mm; Height: 700mm | |||
| Carton capacity S26-950: | min: Length: 200mm; Width: 160mm; Height: 130mm | ||
| max: Width: 970mm; Height: 650mm | |||
| Carton capacity S26-1200: | min: Length: 200mm; Width: 160mm; Height: 130mm | ||
| max: Width: 1200mm; Height: 650mm | |||
| Measures: | Length: 1240 mm x Width: 940 mm x Height: 1238-1955 mm | ||
| Tape width: | 75 mm | ||
| Power supply: | 230 V 50 Hz | ||
