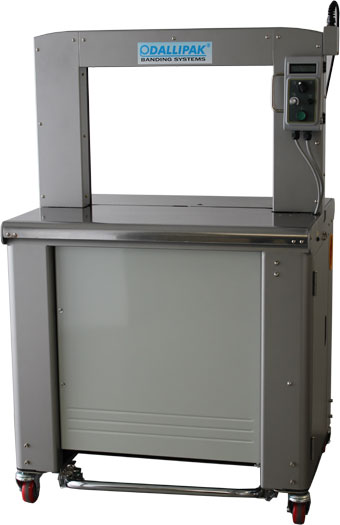

| TP Business II |    |
||||||||
|
Fully automatic strapping machine
The TP Business II is the improvement of the well known 5 mm machines. Our machine has many technical enhancements compared to similar machines of our competitors.
Innovative waist-high roll change without access to the bottom of the machine. Quick release lock eliminates downtime to change the coil. Ergonomic and quick change design makes coil change simpler than ever. Features
Advantages
|
||||||||
Width/Height |
550 |
650 |
850 |
1050 |
1250 |
1650 |
|||
400 |
S |
X |
|||||||
500 |
X |
X |
X |
X |
|||||
600 |
X |
||||||||
800 |
X |
X |
X |
||||||
1000 |
X |
X |
|||||||
| X: Available, S: Standard | |||||||||
| Suitable Strapping material | |||||||||
| Strapping band white | PP 5x0,47x6500 | ||||||||

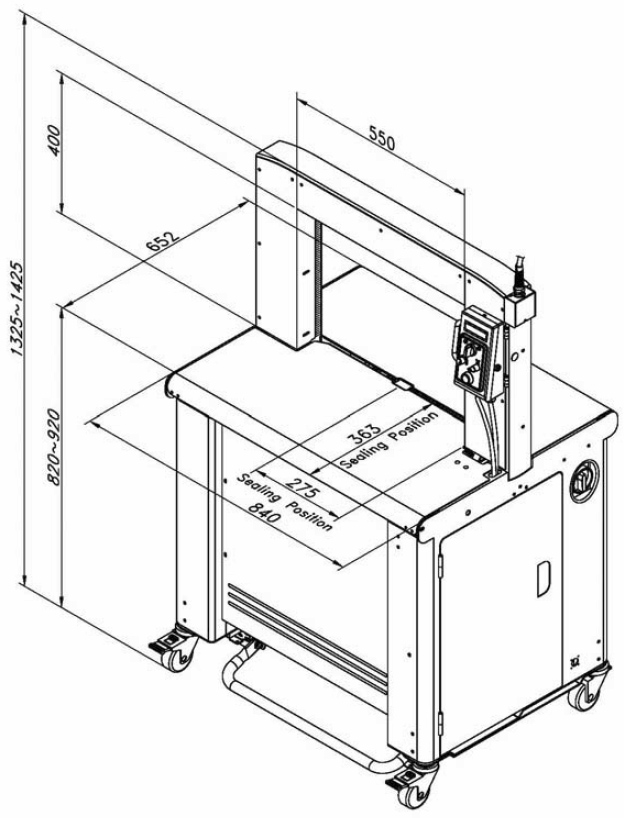

| Technical Data | |||
| Type: | TP Business II | ||
| Band width: | 5 mm | ||
| Tension: | 1-32 kg | ||
| Speed: | up to 65 straps per minute | ||
| Table Height: | 870 - 1020 mm | ||
| Height: | 1355 - 1505 mm | ||
| Width: | 826 mm | ||
| Depth: | 620 mm | ||
| Weight: | 160 kg | ||
| Energy: | 230 V / 50 Hz | ||
