SIAT SR4




   SIAT SR4

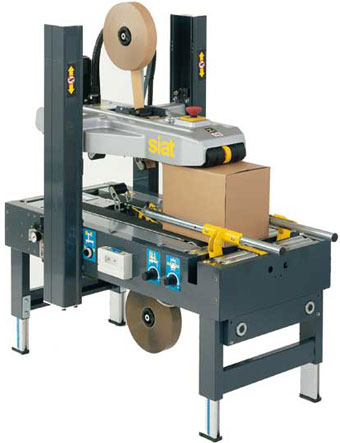

Semi automatic carton sealing machine

Semi automatic carton sealing machine with automatic adjustment from SIAT. The machine seals cartons with self adhesive tape and can be used for a large number of cartons with various sizes.

The filled cartons are being pushed into the machine by the operator, the belt drive takes the package and pushes it through the machine. At the same time the bottom and the top of the carton are sealed with self adhesive tape.

Suitable for standard cartons.

Options
  • Wheels (4 wheels with breaks per machine)
  • Higher legs (600 mm)
  • Input roll conveyor
  • Output roll conveyor



  Technical Data
  Type: SIAT SR4
  Drive: Top and Bottom belt drive
  Speed: 20 m / min (800 Boxes / hour)
  Carton Capacity: min: Length: 150mm; Width: 140mm; Height: 110mm
    max: Width: 500mm; Height: 500mm
  Measures: Length: 1240 mm x Width: 740 mm x Height: 1275-2025 mm
  Tape width: 50 mm / 75 mm
  Power supply: 230 V  50 Hz

DTM GmbH - http://www.dtm-gmbh.at
E-Mail: info@dtm-gmbh.at - Tel.: +43 / 2253 / 81045
