SIAT SM44 range




   SIAT SM44 range

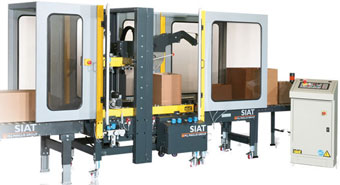

Automatic carton sealing machine

Automatic carton sealing machine with automatic adjustment from SIAT. The machine seals cartons with self adhesive tape and can be used for a large number of cartons with various sizes.

The filled cartons are being pushed into the machine, the belt drive takes the package and pushes it through the machine. At the same time the bottom and the top of the carton are sealed with self adhesive tape.

Suitable for standard cartons.

Options
  • Wheels (4 wheels with breaks per machine)
  • Higher legs (600 mm)
  • Input roll conveyor
  • Output roll conveyor



  Technical Data
  Type: SIAT SM44 range
  Drive: Top and side belt drive
  Speed: 20 m / min (800 Boxes / hour)
  Carton Capacity: min: Length: 200mm; Width: 160mm; Height: 140mm
    max: Length: 600mm; Width: 500mm; Height: 500mm

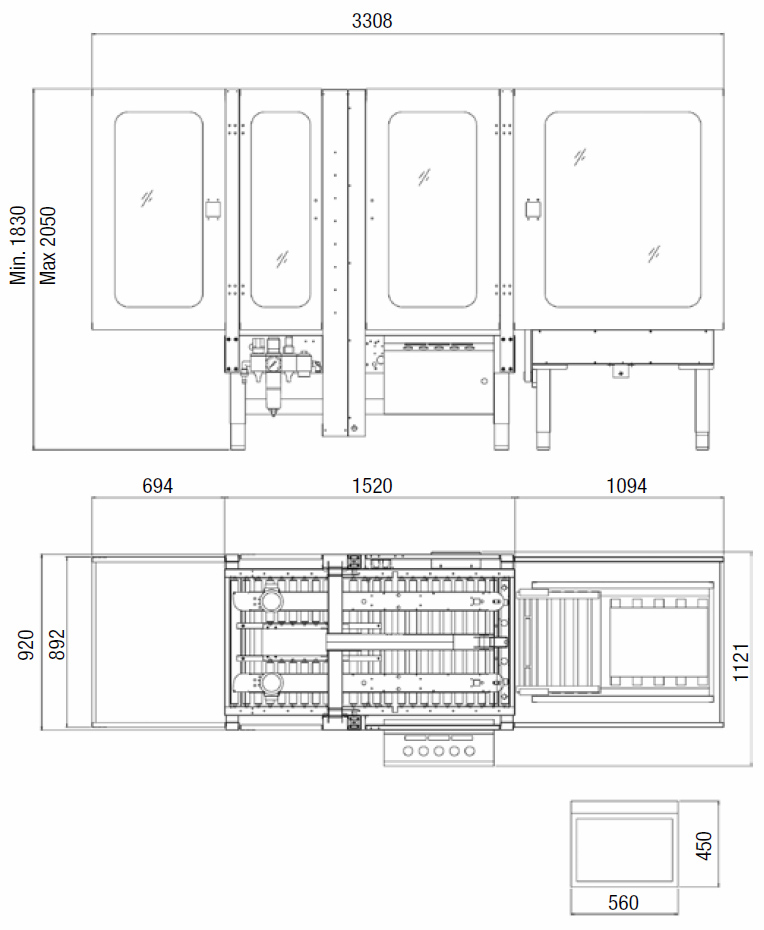

  Measures: Length: 3308 mm x Width: 1121 mm x Height: 1830-2050 mm
  Tape width: 50/75 mm
  Power supply: 230 V  50 Hz
