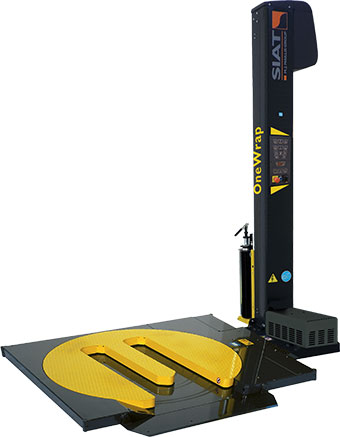

OneWrap - TP




   DTM FW 1 - TP
Semi automatic stretch wrapping machine with an electronic control

Features
  • Open Turntable
  • 5 different wrapping programs
  • Photoeye-sensor for pallet height
  • Soft-Start of the turntable
  • Variable turntable speed
  • Variable speed of the film head
  • Variable film tension
  • Seperate adjustment of the high and low turning
  • IP54 safety
Options
  • Carriage for net-film
  • Photoeye-sensor for dark (black) pallets
  • Heating Device for -5° / -20° temperature
  • Drive gear
  • Safety contactor



  Film heads


SIAT Folienkopf
SIAT Folienkopf

  Mechanical Break Electromechanical Prestretch Motorized Prestretch


  Technical Data
  Type: OneWrap - TP
  Turntable diameter: 1500 mm
  Max. loading weight: 1200 kgs
  Max. pallet dimensions: 1200 x 800 mm
  Max. pallet height: 2100 mm / 2400 mm (choice)
  Max. film height: 500 mm
  Max. film roll diameter: 300 mm
  Power supply: 380 V  50 Hz  3 Ph.
